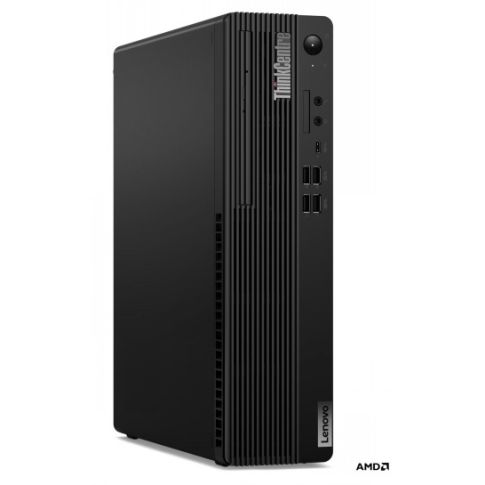

LENOVO M75S SFF G5 R7-8700G/16GB/1TB/DVDVRW/RS232/W11P/3OS

Lenovo ThinkCentre M75s SFF Gen5 is a business-class desktop computer built on powerful AMD technology. The slightly larger SFF chassis offers an extensive array of ports and multiple expansion slots. The Microsoft Pluton security processor enhances the resilience of ThinkCentre M75s SFF models against hardware and firmware attacks.

Key Features:

• Operating System: Windows 11 Pro 64-bit
• CPU: AMD Ryzen 7 8700G (8C/16T,4.2/5.1GHz,8MB/16MB)
• Chipset: AMD PRO665
• Memory: 16GB DDR5 5200MHz UDIMM (1x16)
• Memory capacity max.: 64GB (2x32)
• Integrated graphics: AMD Radeon 740M Graphics
• SSD 1TB M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
• Additional Storage Support: 1x3.5"HDD and 1xM.2 2280
• Installation kits for additional drives must be purchased separately as an option
• Optical Drice: internal DVD+/-RW
• Card Reader: 3-in-1 (SD/SDHC/SDXC)
• Internal Speaker: 1x1W
• LAN: 100/1000M Gigabit Ethernet
• WLAN: one free M.2 Wi-Fi slot
• Lenovo USB keyboard and USB Mouse included
• Front panel: 4xUSB-A 3.2 Gen1, 1xUSB-C 3.2 Gen1, 1x3.5mm audio combo, 1x3.5mm Mic
• Back panel: 2xDisplayPort 1.4a, HDMI 2.1 TMDS, 4xUSB2.0, 1xRS232, RJ-45, 1x3.5mm Line Out
• Low Profile Expansion Slots: 1xPCIe 3.0 x1, 1xPCIe 3.0 x16
• LP Card max. Size: =155mm (length), =70mm (height)
• Security chip: TPM 2.0 (TCG ja FIPS 140-2 certified)
• Security CPU: Microsoft Pluton
• Kensington® Security Slot™ (3x7mm)
• Internal PSU: 260W 90%
• Military-Grade Durability: MIL-STD-810H
• Standard warranty: 3Y on-site
• Weight: 4.6kg

Lenovo CO2 Offset Gen2 Emission Compensation

• The carbon dioxide emissions generated from the production, transportation, and electricity consumed throughout the lifecycle of this device have been offset through the global Climeco organization in approved UN environmental projects.

Environmental and Energy Certifications

• ENERGY STAR® 8.0, EPEAT™ Gold Registered, ErP Lot 3, GREENGUARD®, RoHS compliant, TCO Certified 9.0

Warranty
Product life cycle used in emission assessments, years	4
Manufacturing-related CO2 emissions, kg (manufacturer?s estimate)	314.7
Product life cycle CO2 emissions, kg (manufacturer?s estimate)	479
Operating system provided	Windows 11 Pro
Connections	Audio (3.5mm), DisplayPort, Ethernet (RJ-45), HDMI, Serial (RS-232), USB-A, USB-C
Internal memory	16 GB
Solid State Disk drive type	M.2 PCIe NVMe
Maximum internal memory, GB	64 GB
Motherboard chipset	AMD PRO665
Memory slots (available)	2
Power supply, W	290
Processor manufacturer	AMD
Dimensions W x D x H, mm	92.5 x 297.7 x 339.5
Internal memory type	DDR5
Weight, g	4600
Memory clock speed, MHz	5200
Ethernet LAN (RJ-45) ports quantity	1
USB-A (USB 3.2) ports quantity	4
HDMI ports quantity	1
Memory slots	2
DisplayPorts quantity	2
USB-C (USB 3.2) ports quantity	1
USB-A (USB 2.0) ports quantity	4
Green certifications	EPEAT Gold, Energy Star 8.0, ErP, GREENGUARD, RoHS compliant, TCO 9.0
L3 cache, MB	16
PCI Express x16	1
PCI Express x1	1
Processor family	AMD Ryzen 7
Processor number of cores	8
Total storage capacity	1 TB SSD
Graphic adapter	AMD Radeon 780M
Processor clock speed, GHz	4.20
Processor model	AMD Ryzen 7 8700G (Max. 5.1GHx, 16MB, 8C)
RAID controller	Nėra
Wireles LAN (WLAN)	Nėra
Optical drive	Taip
Integrated Memory Card Reader	Taip
Bluetooth	Nėra
Dedicated video memory (GB)	Uses system memory
Svoris	6.69
Aukštis	195
Plotis	395
Ilgis	530
EANCode	198154643157
